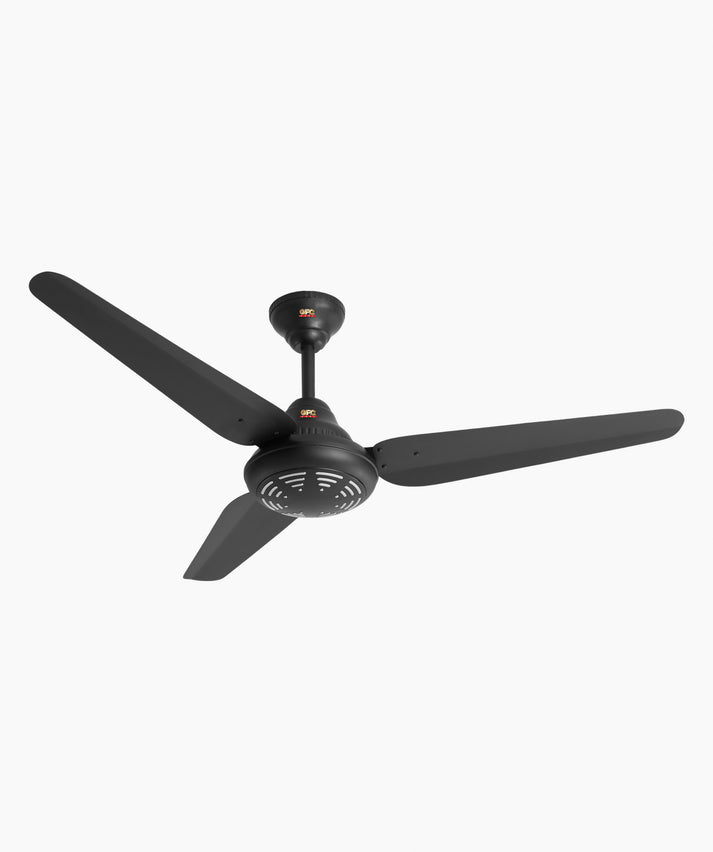

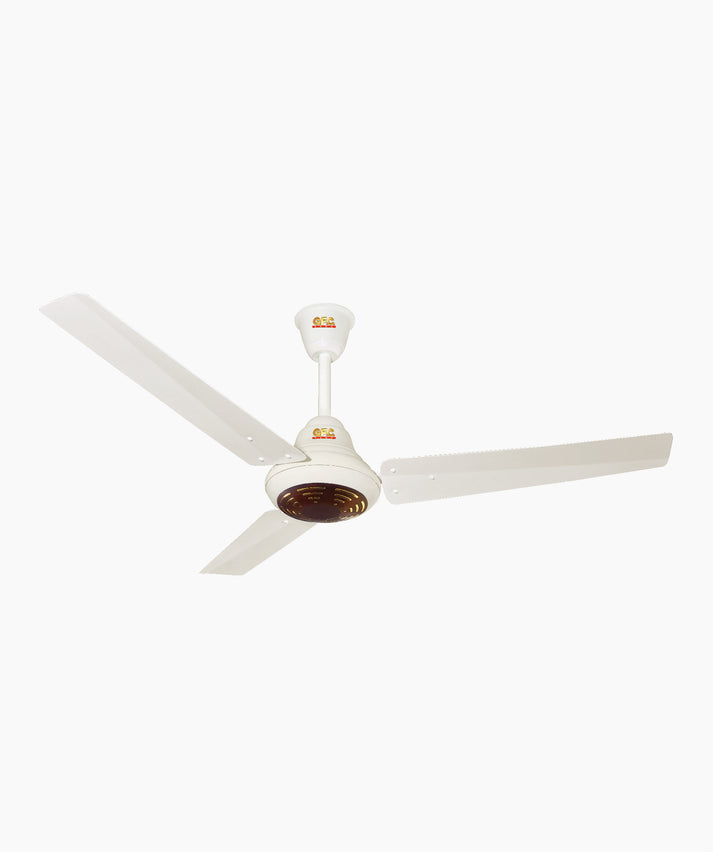

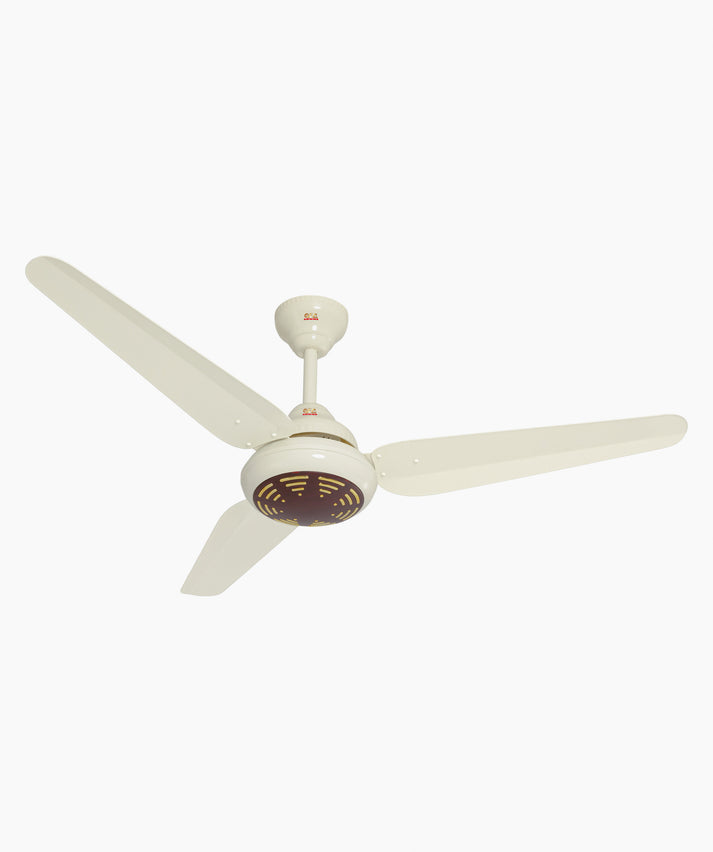

Iconic

• Superior quality aluminum alloy construction.
• Energy efficient Electrical Steel Sheet and 99.9% Pure Copper Wire.
• “E” grade varnish insulation to protect from electric shock and voltage fluctuation.
• Aerodynamically designed blades for maximum air delivery.
• High quality paint for superior finishing.
• Packed in strong corrugated cartons with protective thermopore.
• General Specifications

Type Blades Sweep Warranty

BLDC Hybrid 3 1400mm Yes

Technical Specifications Inverter

MODE TYPE AC MODE DC MODE

Rated Mode 230 VOLT AC 12 VOLT DC

Power Input 55 WATT 45 WATT

Frequency 50 Hz NA

Current in Phase 0.25 A 3.75 A

Speed @ Full 1400 rpm 1350 rpm

Speed @ Slow 610 rpm 605 rpm

Air Delivery 100 m3/min 85 m3/min

Power Factor 0.97 NA

Service Value 1.80 m3/min/W 1.85 m3/min/W

Control of Fan REMOTE CONTROL REMOTE CONTROL

Remote Type RF REMOTE RF REMOTE

No. of Speeds 07 07

Winding Material Pure Copper Pure Copper

Timmer 1H-4H-8H 1H-4H-8H
